Road

Mamtor [Founders Batch]

*Payment secures your place in the next batch

Next batch Shipping:

June 2026

Description

The Mamtor is our definitive expression of a modern road bike.

Road

Mamtor [Founders Batch]

*Payment secures your place in the next batch

Next batch Shipping:

June 2026

Description

The Mamtor is our definitive expression of a modern road bike.

Road

Mamtor [Founders Batch]

*Payment secures your place in the next batch

Next batch Shipping:

June 2026

Description

The Mamtor is our definitive expression of a modern road bike.

Details

The Mamtor is designed to be the bike you reach for first. Its geometry and structure resolve the competing demands of contemporary road riding into a single, assured form. Smooth tarmac, broken lanes, the final stretch home at speed - it holds its line and so you don’t have to.

What makes the Mamtor special is its sense of inevitability. Every decision supports a ride that feels natural and composed, as if the bike could not be otherwise. It is built for riders who value how something is made as much as how it is used - a road bike intended to be chosen again and again.

Hero Image
Hero Image
Hero Image
Hero Image
Hero Image

Limited to 25 frames worldwide, the Founders’ Batch introduces the Mamtor - a modern road bike developed with the same restraint, care, and depth that have defined Quirk for over a decade.

Founders’ Batch Orders Include:

  • A unique polished stainless steel Founders’ Batch head badge

  • Each frame individually numbered

  • Founders’ Build Notes documenting the thinking behind the Mamtor

  • An invitation to a private London workshop ride and evening

*Orders for the Founders’ Batch are open now and will close on 31 March. Once closed, this specification will not be produced again.

Specifications

Frame

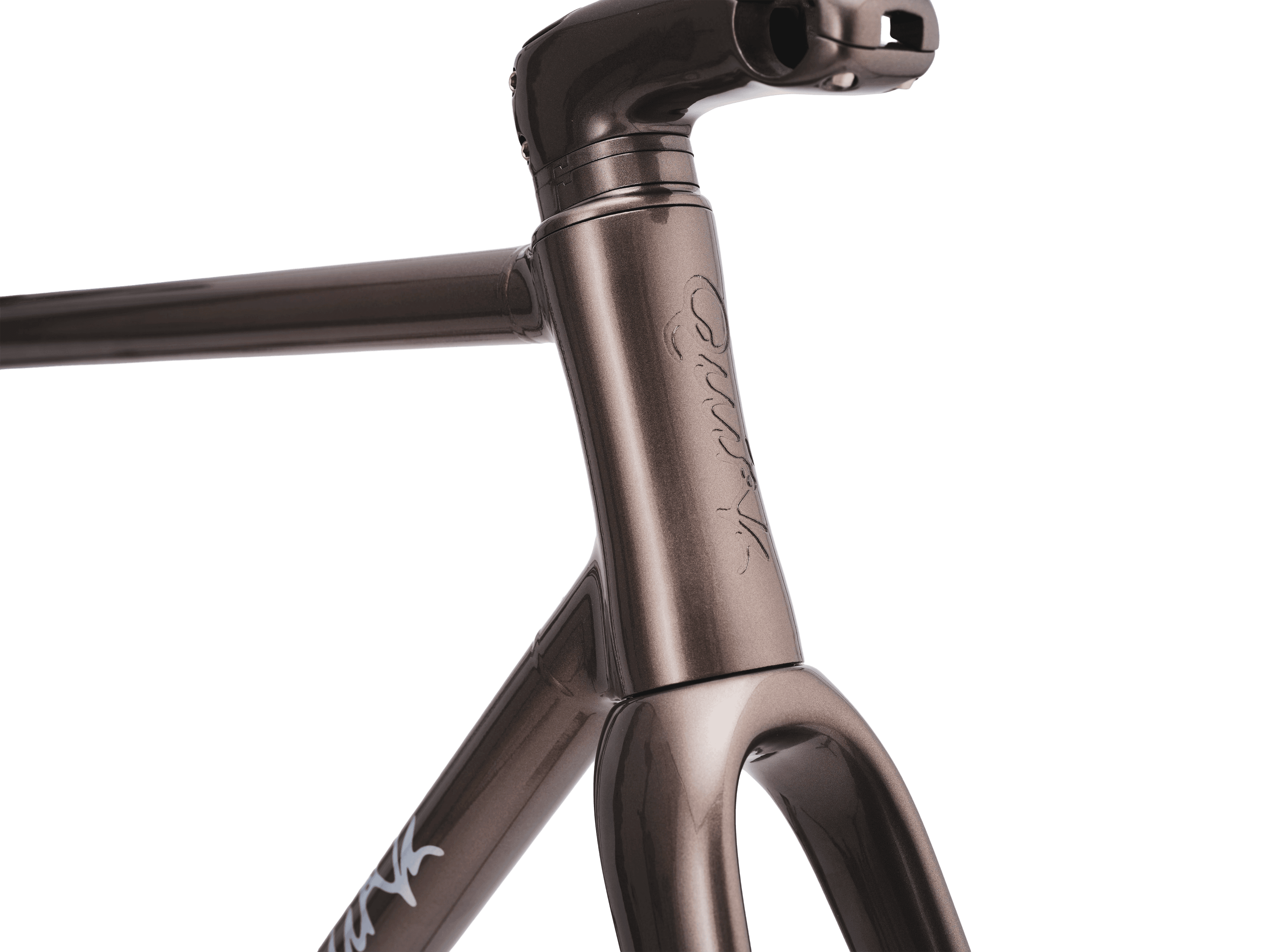

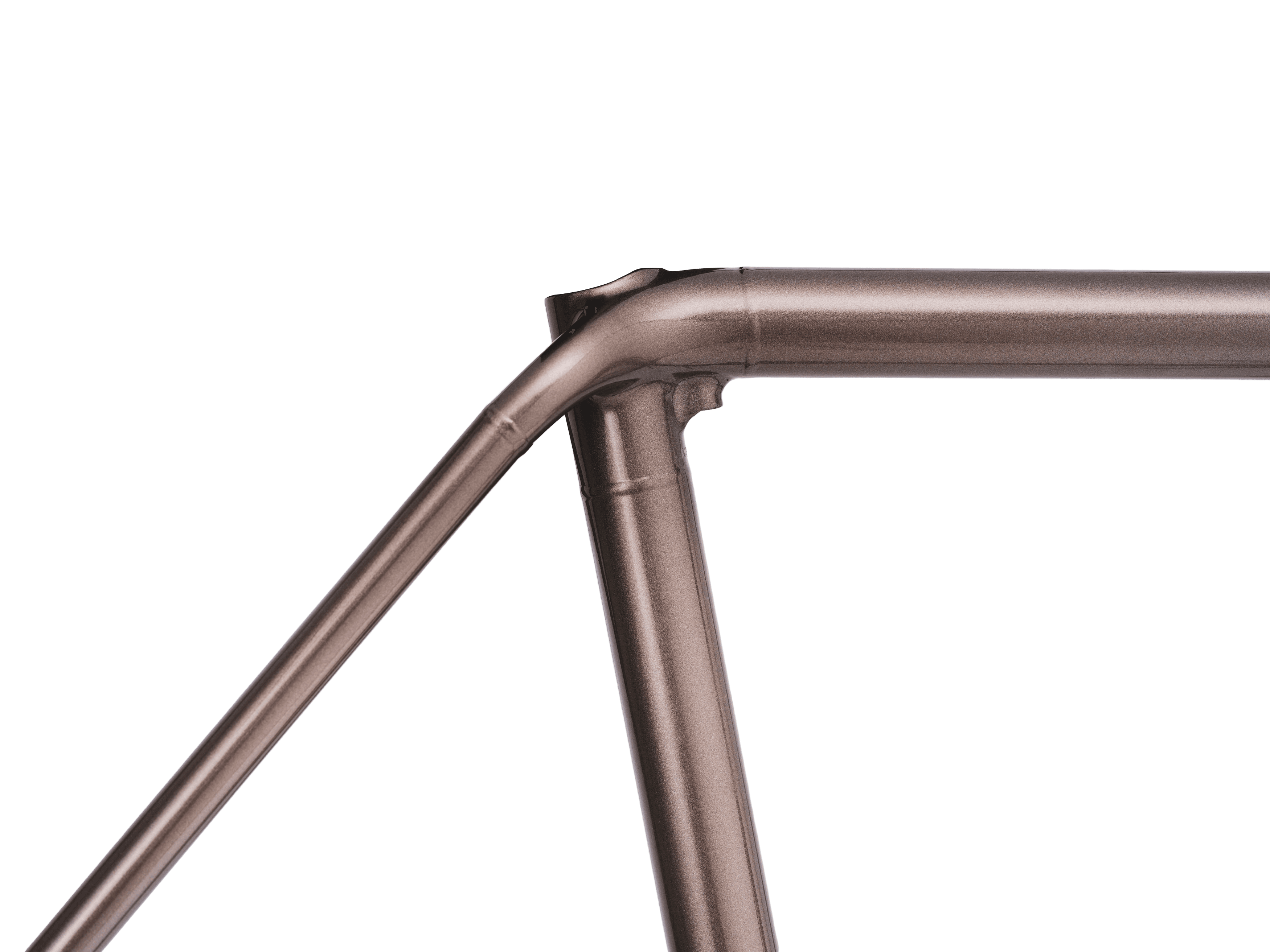

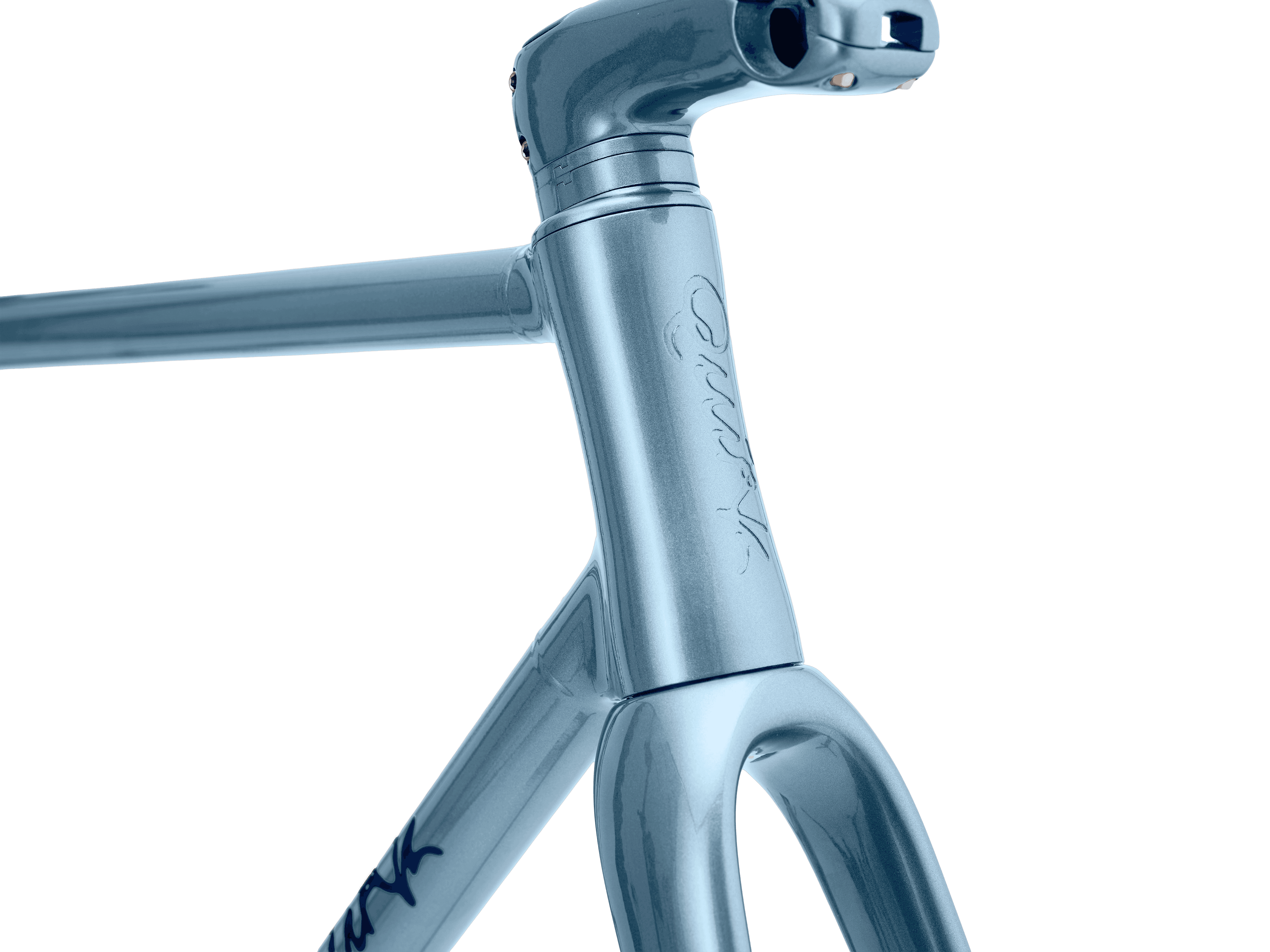

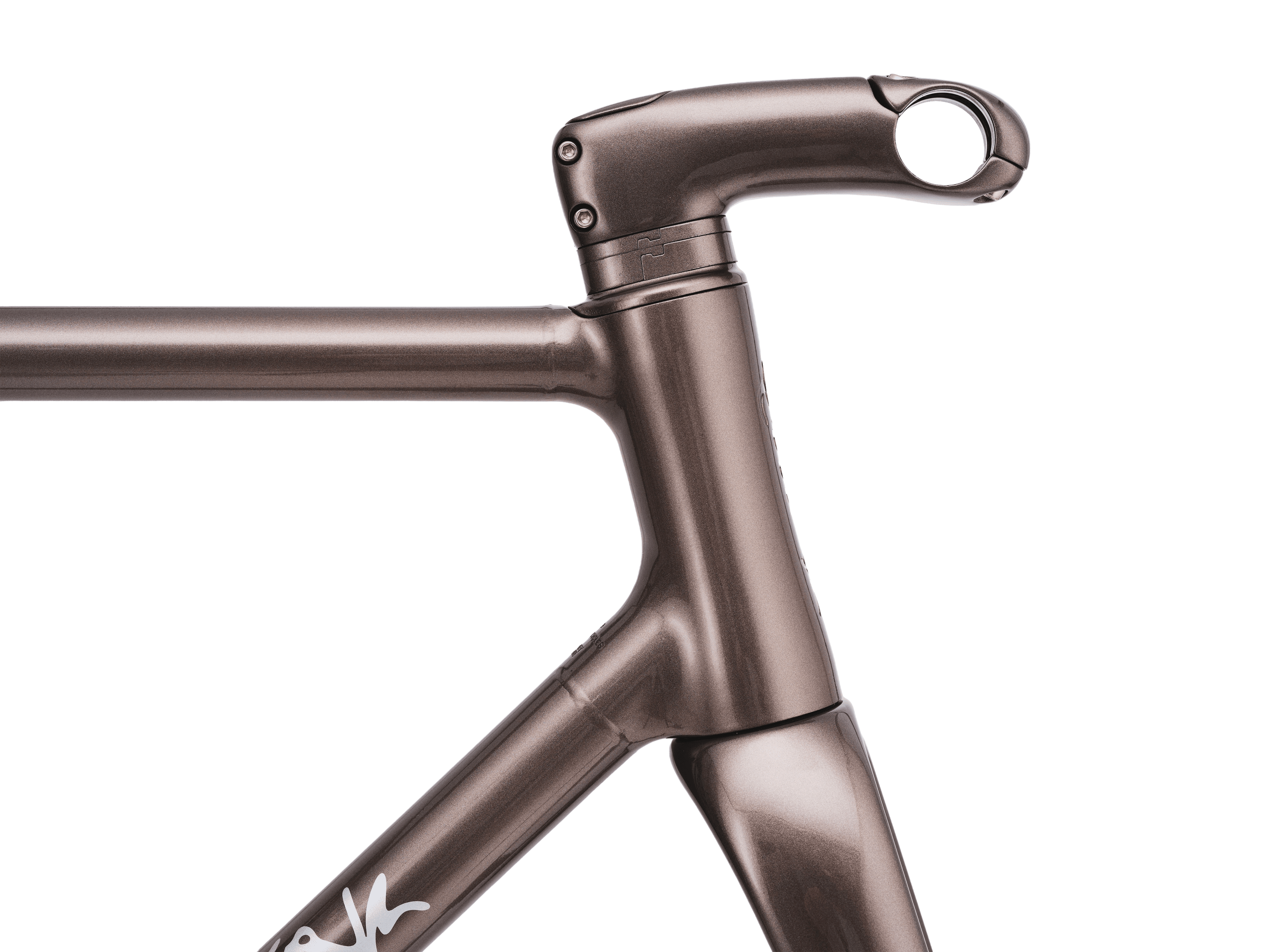

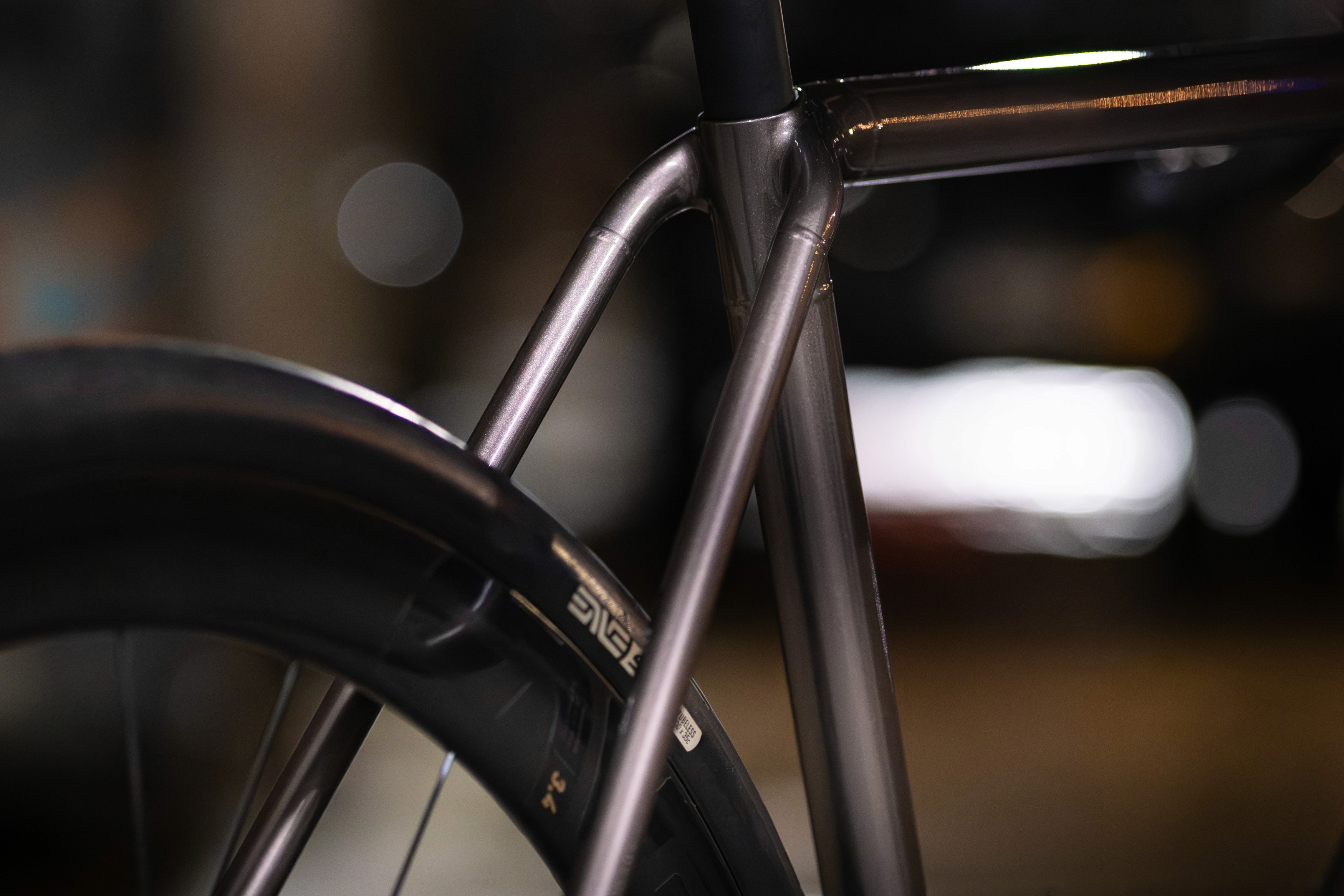

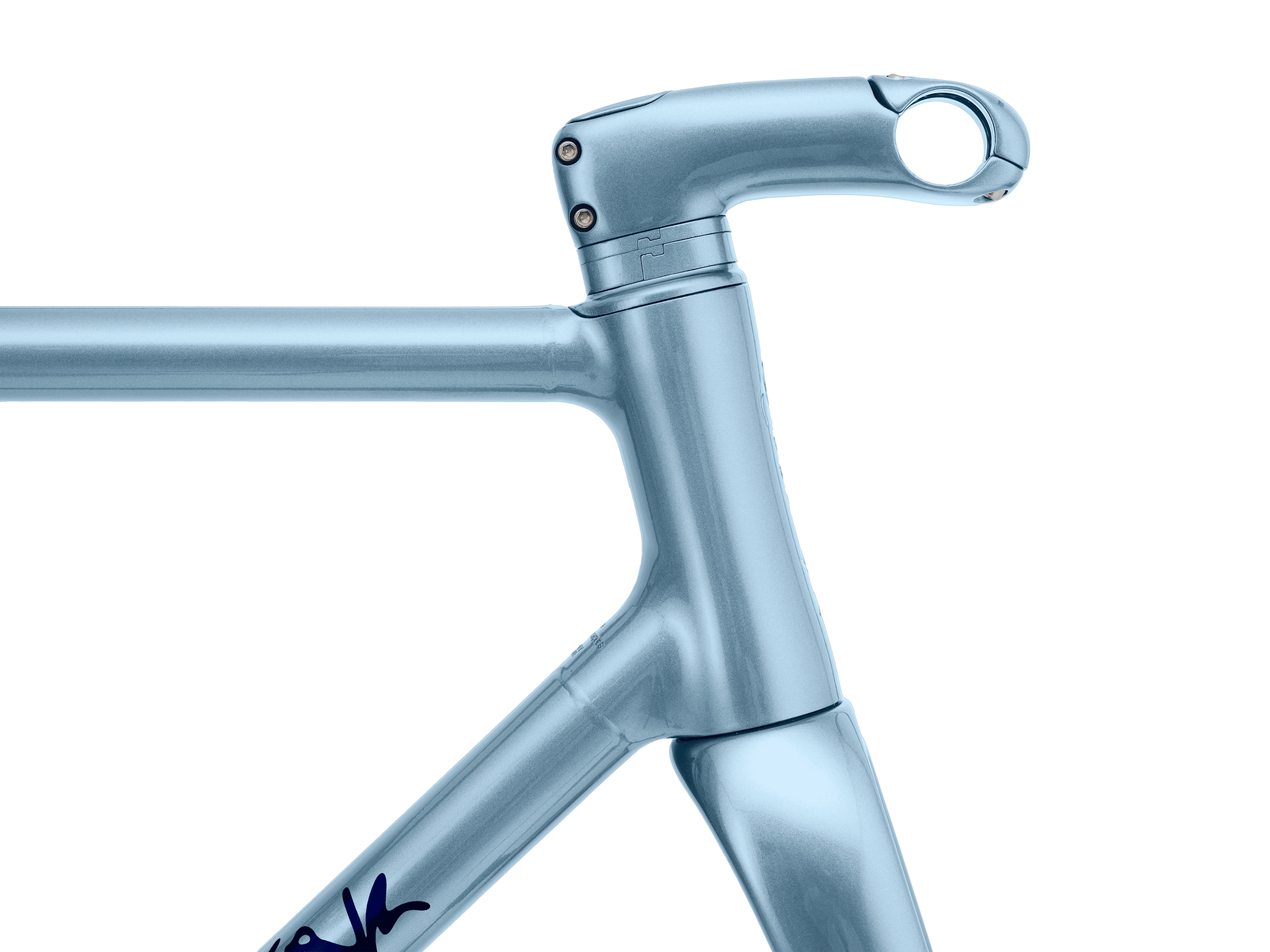

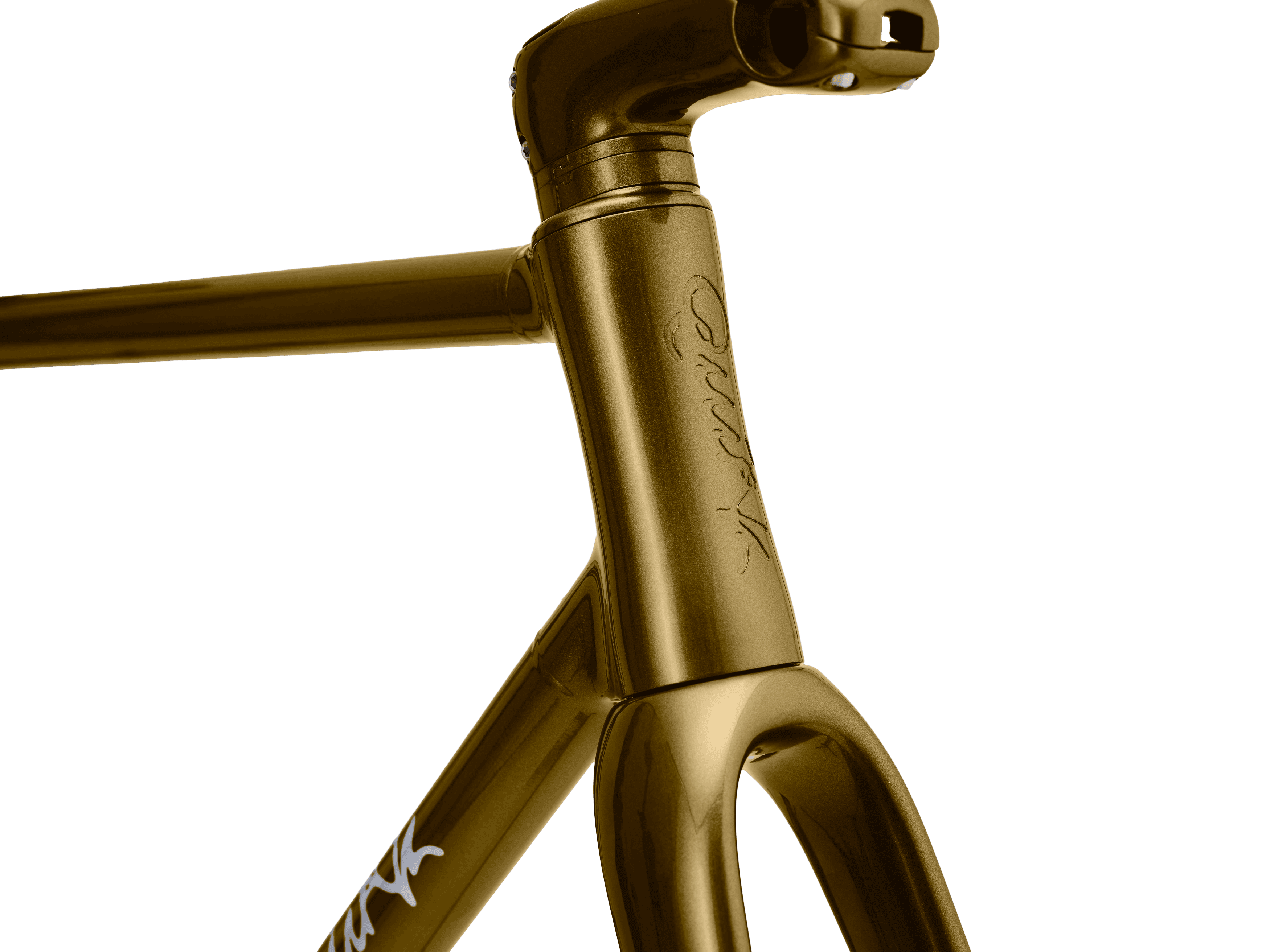

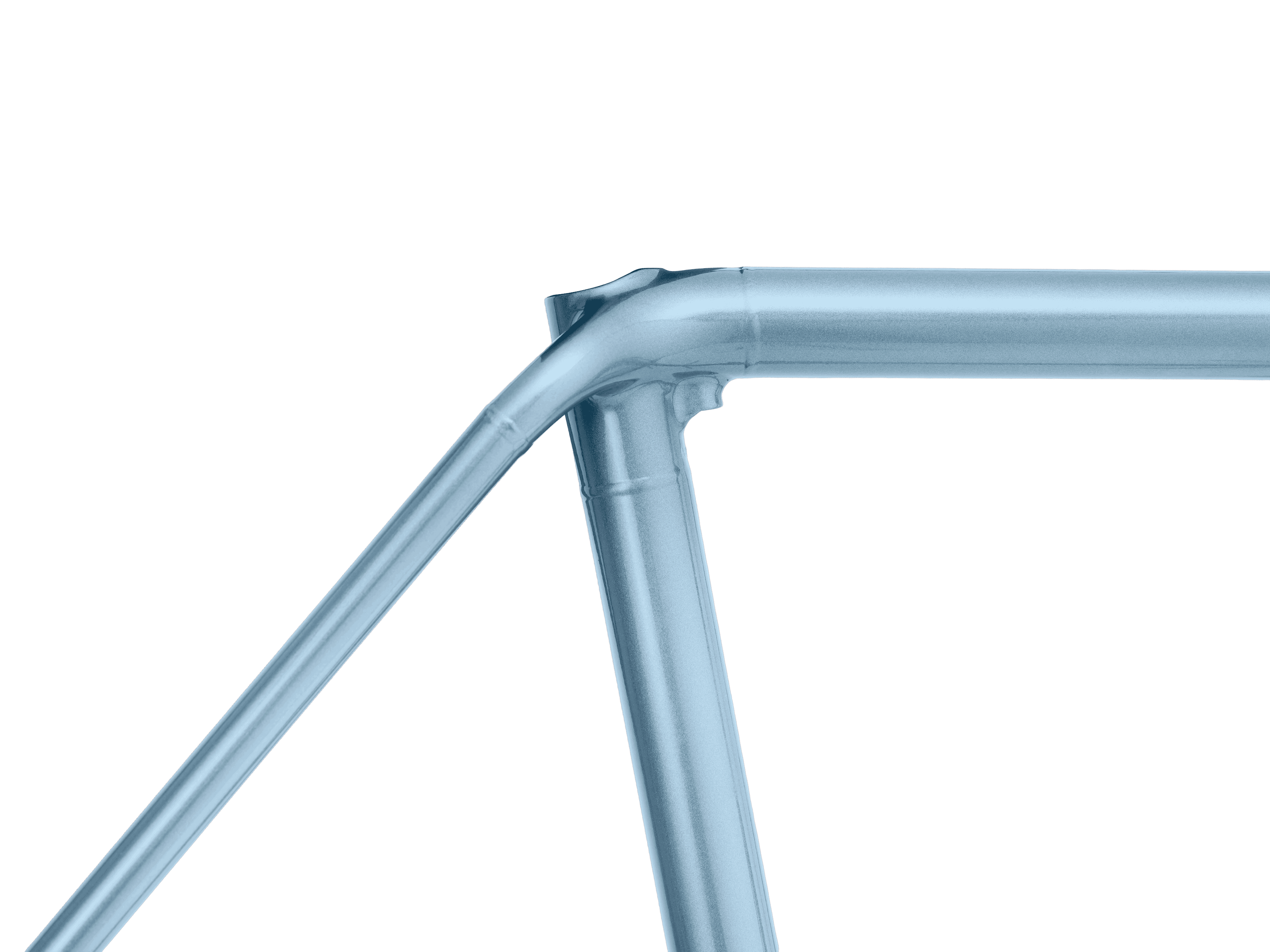

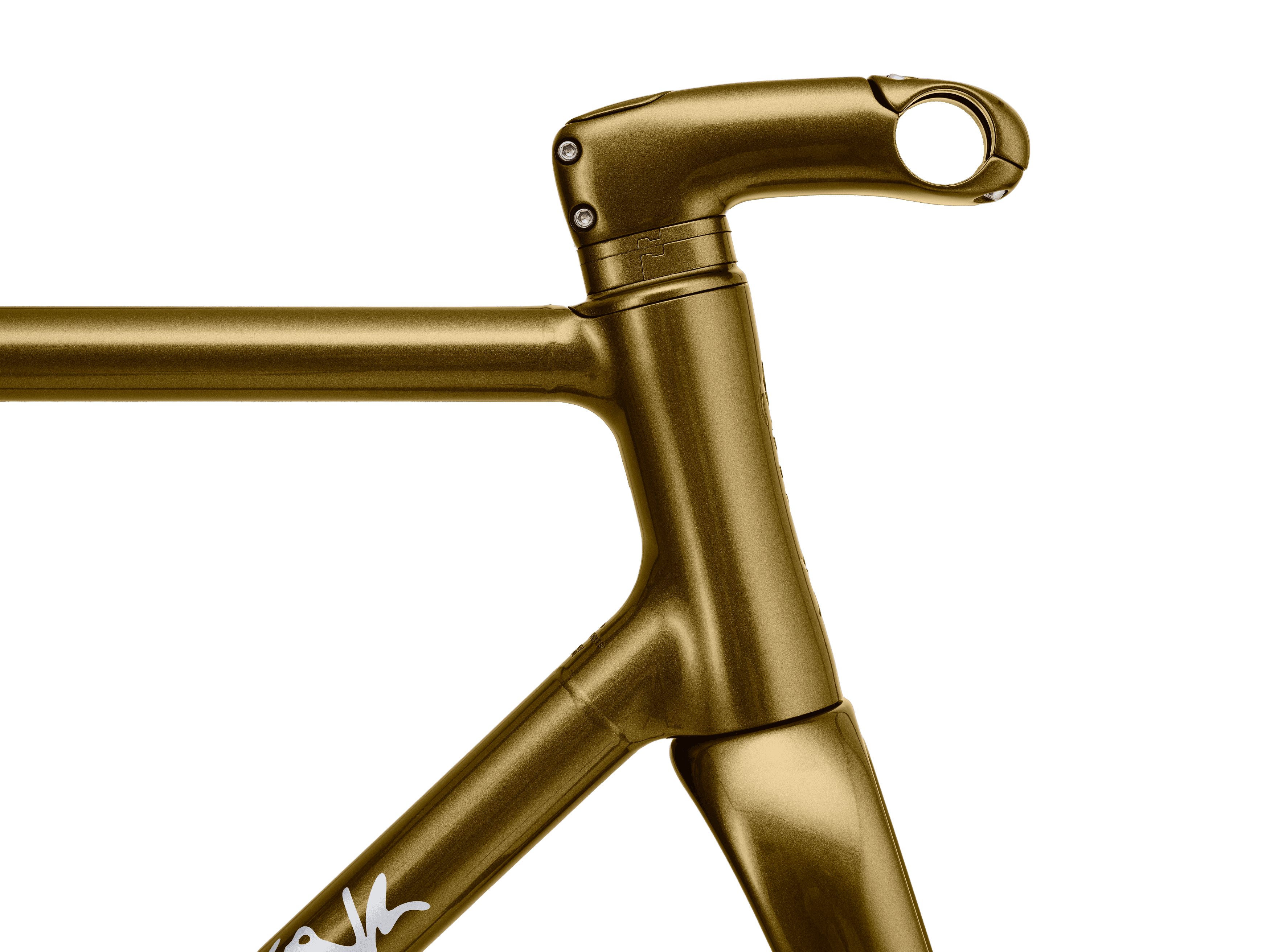

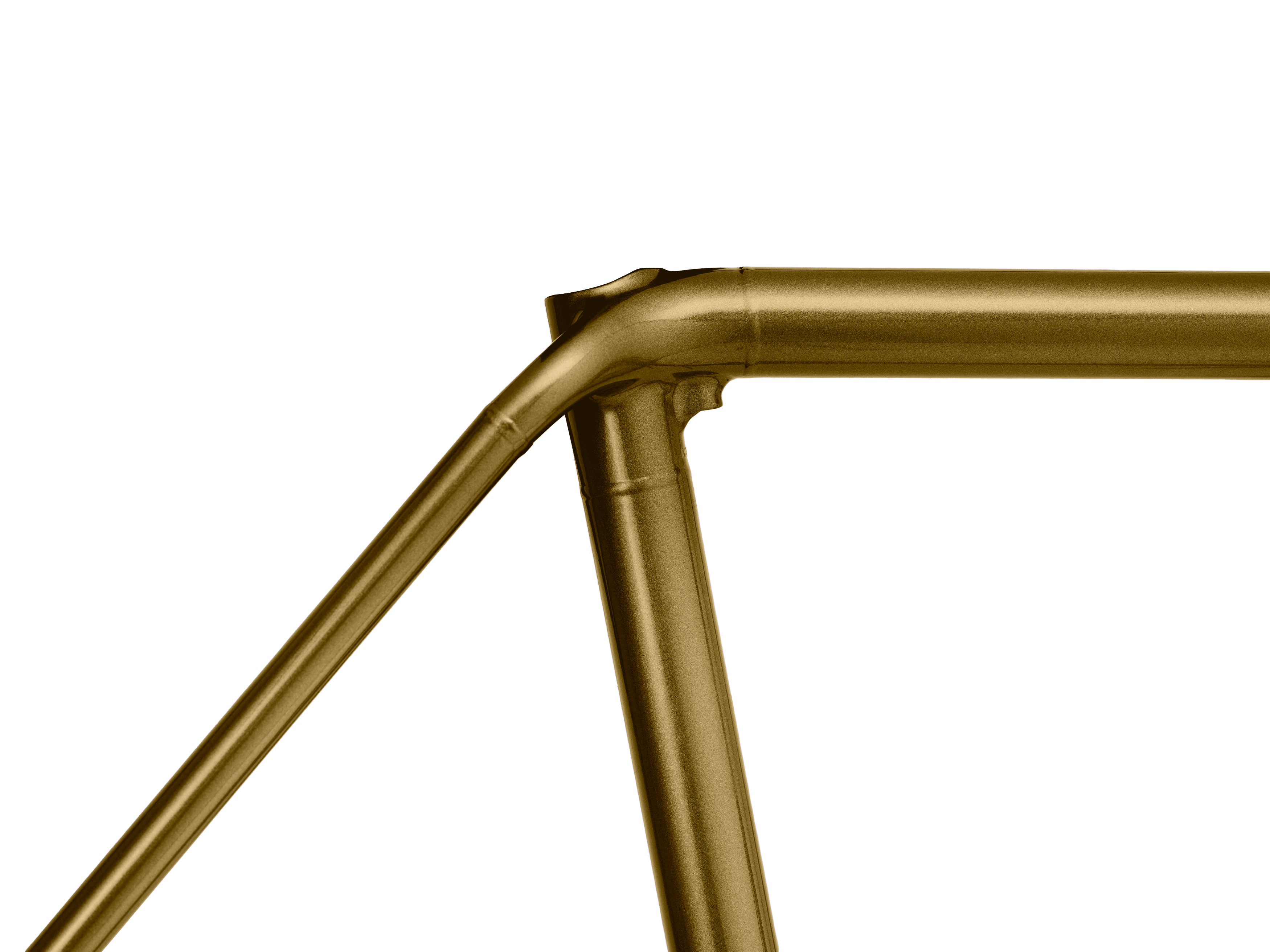

Columbus Life tubing joined to our proprietary 3D printed stainless steel dropouts, head tube and seat cluster

Frames hand-built in London

Fork

Enve All-Road In-Route 100x12mm carbon fork with 1.1/2"-1.1/8" tapered steerer

Mudguard Mounts

Paint & Protection

Each frame is hand-painted in the UK in Quirk signature colourways

Components

Enve In-Route Aero Stem and spacers colour-matched to frame

UDH hanger (SRAM full mount derailleurs compatible)

Quirk signature 3D printed titanium top cap

Chris King AeroSet bearings

Quirk integrated seat clamp

Front and rear 12mm axles

Mounts

2 sets of bottle bosses

Front and rear mudguard mounts

Compatibility

Compatible with Shimano Di2, SRAM AXS and Campagnolo Wireless electronic road and gravel groupsets

Chainsets - Double - max size 53-39T. Single - max size 46T

Bottom bracket - T47 68mm (not included)

Front Mech - 31.8mm band-on (not included)

Seatpost - 27.2mm (not included)

Seatpost clamp - Internal wedge system with T25 bolt

Rotors - 160mm max front and rear

SHIS Headset specification – IS52 | IS52

Tyre Clearance

Max measured width – 700 x 40

Max with guards 700 x 30 (35mm guards)

Rider Weight Limit

Rider weight Limit – 110kg

Warranty

5 Year warranty on Frame & Forks

2 year warranty on components

Limited to original purchaser



Framekit

[Additional Components]


Seatpost

Enve 27.2mm Carbon seatpost

Bars

Enve SES AR Road In-Route Handlebar



Rolling Chassis

[Additional Components]


Seatpost

Enve 27.2mm Carbon seatpost

Bars

Enve SES AR Road In-Route Handlebar

Wheels

Enve SES 3.4 | SES 4.5 | AR40 carbon wheelset

Tyres

Enve SES Road Tyre

Frame

Columbus Life tubing joined to our proprietary 3D printed stainless steel dropouts, head tube and seat cluster

Frames hand-built in London

Fork

Enve All-Road In-Route 100x12mm carbon fork with 1.1/2"-1.1/8" tapered steerer

Mudguard Mounts

Paint & Protection

Each frame is hand-painted in the UK in Quirk signature colourways

Components

Enve In-Route Aero Stem and spacers colour-matched to frame

UDH hanger (SRAM full mount derailleurs compatible)

Quirk signature 3D printed titanium top cap

Chris King AeroSet bearings

Quirk integrated seat clamp

Front and rear 12mm axles

Mounts

2 sets of bottle bosses

Front and rear mudguard mounts

Compatibility

Compatible with Shimano Di2, SRAM AXS and Campagnolo Wireless electronic road and gravel groupsets

Chainsets - Double - max size 53-39T. Single - max size 46T

Bottom bracket - T47 68mm (not included)

Front Mech - 31.8mm band-on (not included)

Seatpost - 27.2mm (not included)

Seatpost clamp - Internal wedge system with T25 bolt

Rotors - 160mm max front and rear

SHIS Headset specification – IS52 | IS52

Tyre Clearance

Max measured width – 700 x 40

Max with guards 700 x 30 (35mm guards)

Rider Weight Limit

Rider weight Limit – 110kg

Warranty

5 Year warranty on Frame & Forks

2 year warranty on components

Limited to original purchaser



Framekit

[Additional Components]


Seatpost

Enve 27.2mm Carbon seatpost

Bars

Enve SES AR Road In-Route Handlebar



Rolling Chassis

[Additional Components]


Seatpost

Enve 27.2mm Carbon seatpost

Bars

Enve SES AR Road In-Route Handlebar

Wheels

Enve SES 3.4 | SES 4.5 | AR40 carbon wheelset

Tyres

Enve SES Road Tyre

Frame

Columbus Life tubing joined to our proprietary 3D printed stainless steel dropouts, head tube and seat cluster

Frames hand-built in London

Fork

Enve All-Road In-Route 100x12mm carbon fork with 1.1/2"-1.1/8" tapered steerer

Mudguard Mounts

Paint & Protection

Each frame is hand-painted in the UK in Quirk signature colourways

Components

Enve In-Route Aero Stem and spacers colour-matched to frame

UDH hanger (SRAM full mount derailleurs compatible)

Quirk signature 3D printed titanium top cap

Chris King AeroSet bearings

Quirk integrated seat clamp

Front and rear 12mm axles

Mounts

2 sets of bottle bosses

Front and rear mudguard mounts

Compatibility

Compatible with Shimano Di2, SRAM AXS and Campagnolo Wireless electronic road and gravel groupsets

Chainsets - Double - max size 53-39T. Single - max size 46T

Bottom bracket - T47 68mm (not included)

Front Mech - 31.8mm band-on (not included)

Seatpost - 27.2mm (not included)

Seatpost clamp - Internal wedge system with T25 bolt

Rotors - 160mm max front and rear

SHIS Headset specification – IS52 | IS52

Tyre Clearance

Max measured width – 700 x 40

Max with guards 700 x 30 (35mm guards)

Rider Weight Limit

Rider weight Limit – 110kg

Warranty

5 Year warranty on Frame & Forks

2 year warranty on components

Limited to original purchaser



Framekit

[Additional Components]


Seatpost

Enve 27.2mm Carbon seatpost

Bars

Enve SES AR Road In-Route Handlebar



Rolling Chassis

[Additional Components]


Seatpost

Enve 27.2mm Carbon seatpost

Bars

Enve SES AR Road In-Route Handlebar

Wheels

Enve SES 3.4 | SES 4.5 | AR40 carbon wheelset

Tyres

Enve SES Road Tyre

Hero Image
Hero Image
Hero Image

Geometry


49 (XS)

52 (S)

54 (M)

56 (M/L)

58 (L)

61 (XL)


Stack

527 mm

546 mm

558 mm

579 mm

599 mm

617 mm


Reach

364 mm

374 mm

382 mm

389 mm

397 mm

403 mm


Seat Tube

495 mm

500 mm

515 mm

530 mm

550 mm

565 mm


Top Tube

521 mm

537 mm

548 mm

561 mm

575 mm

586 mm


Head Tube

115 mm

135 mm

145 mm

165 mm

185 mm

205 mm


Head Angle

71.0°

71.0°

71.5°

72.0°

72.0°

72.0°


Seat Angle

73.5°

73.5°

73.5°

73.5°

73.5°

73.5°


Chainstay

425 mm

425 mm

425 mm

425 mm

425 mm

425 mm


Wheelbase

992 mm

1008 mm

1016 mm

1021 mm

1035 mm

1047 mm


Trail

65 mm

65 mm

61 mm

63 mm

63 mm

63 mm


BB Drop

75 mm

75 mm

75 mm

75 mm

75 mm

75 mm


Standover

770 mm

781 mm

795 mm

812 mm

832 mm

848 mm



49 (XS)

52 (S)

54 (M)

56 (M/L)

58 (L)

61 (XL)


Stack

527 mm

546 mm

558 mm

579 mm

599 mm

617 mm


Reach

364 mm

374 mm

382 mm

389 mm

397 mm

403 mm


Seat Tube

495 mm

500 mm

515 mm

530 mm

550 mm

565 mm


Top Tube

521 mm

537 mm

548 mm

561 mm

575 mm

586 mm


Head Tube

115 mm

135 mm

145 mm

165 mm

185 mm

205 mm


Head Angle

71.0°

71.0°

71.5°

72.0°

72.0°

72.0°


Seat Angle

73.5°

73.5°

73.5°

73.5°

73.5°

73.5°


Chainstay

425 mm

425 mm

425 mm

425 mm

425 mm

425 mm


Wheelbase

992 mm

1008 mm

1016 mm

1021 mm

1035 mm

1047 mm


Trail

65 mm

65 mm

61 mm

63 mm

63 mm

63 mm


BB Drop

75 mm

75 mm

75 mm

75 mm

75 mm

75 mm


Standover

770 mm

781 mm

795 mm

812 mm

832 mm

848 mm


Size Guide


XS

S

M

M/L

L

XL

Frame Size [cm]

49

52

54

56

58

61

Height [cm]

155-163

163-170

170-175

175-180

180-188

188-196


XS

S

M

M/L

L

XL

Frame Size [cm]

49

52

54

56

58

61

Height [cm]

155-163

163-170

170-175

175-180

180-188

188-196

Hero Image
Hero Image
